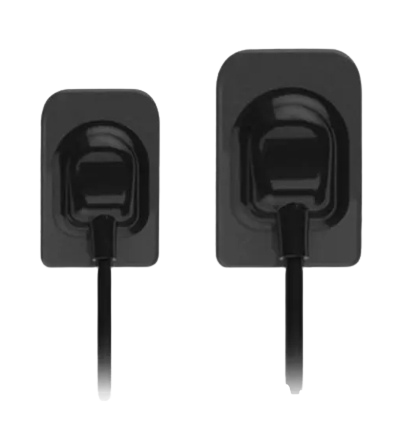

Digital X-Ray Sensor

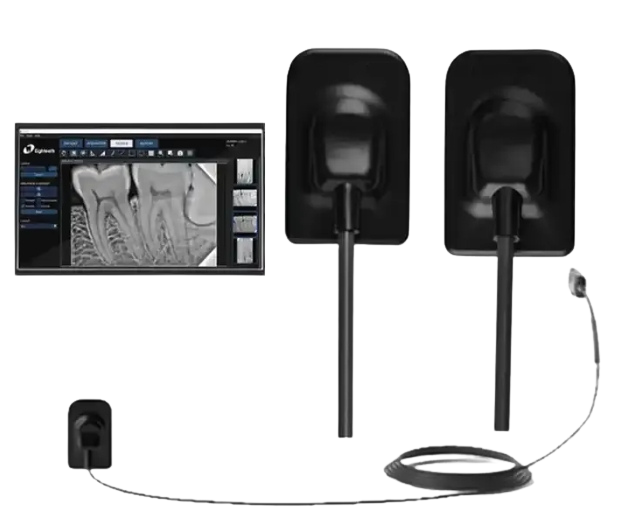

The Dental Sensor, also known as a Digital intra-oral sensor, is an essential tool in modern dentistry. This advanced piece of technology allows dentists to capture high-quality images of a patient's teeth and gums with incredible detail and precision. The sensor is designed to be inserted into the patient's mouth, providing instant digital images that can be used for diagnosis, treatment planning, and monitoring oral health. With its ability to capture clear and accurate images, the dental sensor has revolutionized the way dentists examine and assess their patients' dental health. This not only improves the overall dental experience for patients but also enables dentists to provide more accurate and effective treatments.

Attributes

Place of Origin：China

Warranty：1 Year

Model Number：DX series

Power Source：Electric

Material：Metal, Plastic

Shelf Life：1 year

Quality Certification：CE

Instrument Classification：Class I

Safety Standard：GB15979-2002

Product Specification：Standard configuration

Type：Digital X-ray Sensor

Application：Dental / environment/lab

Largest Pixel Matrix：1000 * 1500

Active Area(mm²)：20*30

Sensor size：25mm*38.5mm*4.4mm

Scintillation Screen：Csl

Max Linearity Dose：>500uGy

Packaging and delivery

Packaging Details：Dental air compressor:standard exporting package

Selling Units:Single item

Single package Size:：2.5X3.85X0.44 cm

Single G.W：1.000 kg

Lead time

Quantity (pieces) ：1 - 5    > 5

Lead time (days) ： 16      To be negotiated

Product Features

Feature                                            Advantage                   Benefits

Smart AED Technology                   Higher sensitivity         3 seconds instant imaging

Direct Evaporation Technology       lower dose                   Safer to shoot

4.4mm                                             Ultra-thin                      Patient comfort and user-friendl operation

IP68 protection                               Support immersion disinfection    Reduce the risk of cross infection

Twain                                               Compatible with third-party software        Diversity of user choices

Specification

Item：DX01  DX02

Purpose：Intro-oral X-Ray sensor

Largest pixel matrix：1000x1500      1300x1800

Pixel Pitch：20 µm

Scintillation Screen：CsI

Sensor Size：25mmx38.5mmx4.4mm      31mmx40mmx4.4mm

Active Area (mm²)：20 × 30     26 × 36

AD Conversion：16bits

Spatial resolution：Limited:25lp/mm Typical:>20lp/mm

Ingress Protection：IP68

Sensitivity：>50lsb/nGy

Max linearity dose：>500uGy

Length of cable：5m(standard), 8m(option)

interface：Direct USB, USB2.0

Power：<0.8W
