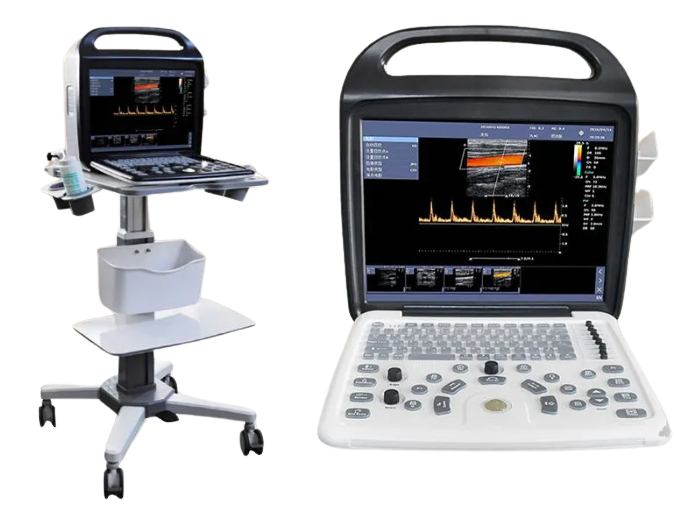

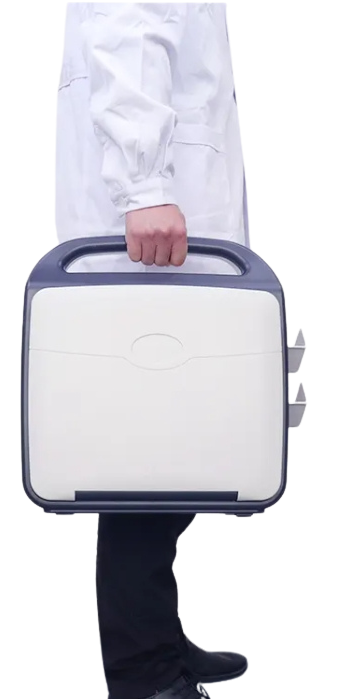

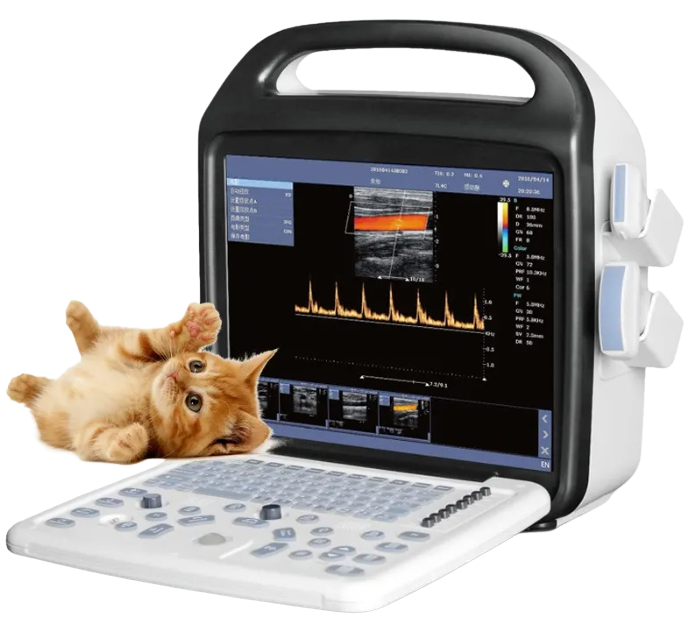

Portable Animal Vital Sign Multiparameter Ultrasound Scanner - Laptop Type Veterinary Sonogram for Pet Cats and Dogs

Product Description

Doppler color ultrasound machine adopts advanced imaging technolog has excellent image performance. It has the characteristics of easy op high cost performance, clear image, stable and reliable quality, rich fu wide application range and strong mobility.

Attributes

Place of Origin: China

Model Number：YP-VP8

Product Name：Portable Multiparameter Ultrasound

Type：Veterinary Ultrasound Equipment

LCD：15 inch

Number of physical channels：≥64

Number of probe array element number：≥128

Lithium battery：Yes

Color PDI Height：0.5-30cm (probe dependent)

Color PDI Center Depth：1-16cm (probe dependent)

Images and pathology reports：Output

Packaging

Selling Units:：Single item

Single package size:40X40X25 cm

Single gross weight:3.500 kg

Design highlights
1、15 inch medical LCD, full digital 128 elements, 64 channels
2、Built-in 500 GB hard disk for data storage
3、Graphics and text management system to enter and classification search medical records

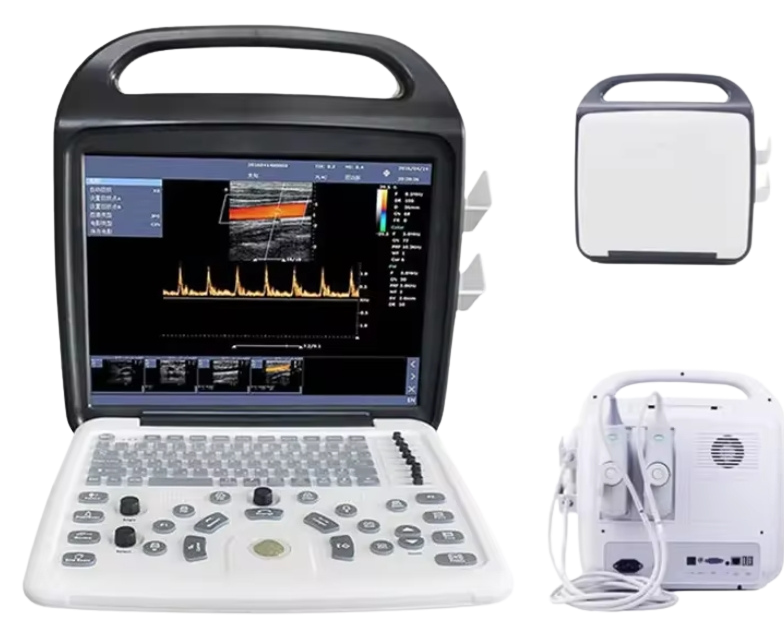

4、Double probe interface, can be used with two probes at the same time
5、Built-in 18650 lithium battery pack, meet the needs of daily power off use
6、Special measurement data package for different organs
7、Images and pathology reports can be exported.

Parameters & Specification

1、B mode

Up to four frequencies in fundamental imaging; 2. Up to two frequencies in Tissue harmonic imaging (probe depen

Dynamic range：  0-100% ,5% step

SpeckleReduction： 8 levels(0-7)

ScanDensity：H,M,L

Gain：0~100 % ,2% step

TGC：eight TGC controls

FrameAverage：8 levels(0-7)

LineAverage：8 levels(0-7)

Edge Enhance：8 levels(0-7)

Gray Maps：15 types(0-14)

Pseudocolor Maps：7 types(0-6)

Thermal Index：TIC,TIS,TIB

2B, 4B formats：/

Invert (U/D) and transposed (L/R)：/

Focus Depth：16 levels(depth and probe dependent)

FOV：5 levels

Image depth up to 35 cm in 0.5~4cm increments (depth dependent)

Phase inversion harmonic imaging technique is available for all probes

2. Color Mode

Frequency：2 levels

Gain：0~100% ,2% steps

Wall filter：8 levels(0-7)

Sensitivity：H,M,L

Flow：H,M,L

Packet Size1：5 levels(0-4)

FrameAverage：8 levels(0-7)

PostProc：4 levels(0-3)

Invert：On/Off

Baseline：7 levels(0-6)

Color Maps：4 levels(0-3)

Color/PDI Width：10%-100%, 10%

Color/PDI Height：0.5-30cm(probe dependent)

Color/PDI Center Depth：1-16cm(probe dependent)

Steer：+/-12°,7°(linear probe)

3. PDI Mode

Frequency:2 levels

Gain: 0~100% ,2% steps

Wall filter: 8 levels(0-7)

Sensitivity: H,M,L

Flow: H,M,L

Packet Size1:5 levels(0-4)

FrameAverage: 8 levels(0-7)

PostProc:4 levels(0-3)

Invert:On/Off

Baseline:7 levels(0-6)

PDI Maps: 2 levels(0-1)

Color/PDI Width: 10%-100%, 10%

Color/PDI Height: 0.5-30cm(probe dependent)

Color/PDI Center Depth: 1-16cm(probe dependent)

Steer: +/-12°, +/-7°(linear probe)

4. PW Mode

Frequency: 2 levels

Sweep speed: 5 levels(0-4)

Scale: 16 levels(0-15) (depth and probe dependent)

Scale Unit: cm/s,KHz

Smooth: 8 levels(0-7)

Pseudocolor Maps: 7 types(0-6)

Dynamic range: 24-100, 2 step

Gain: 0-100%, 2% step

Wall filter: 4 levels(0-3)

Dynamic range: 24-100, 2 step

Gain: 0-100%, 2% step

Wall filter: 4 levels(0-3)

Angle correction: -89+89,1 step

Gate size: 8 levels(0-7mm)

Wall filter:5 levels(0-4)

Invert: On/Off

Baseline: 7 levels

Real-time auto Doppler trace: maximum velocity, mean velocity

5 M Mode

 Frequency: Up to 3 fundamental and 2 harmonic imaging frequencies

Edge enhance: 8 levels(0-7)

Dynamic range: 0-100%,step 5%

Gain: 0-100,step 2

Gray Maps: 15 levels(0-14)

Pseudocolor Maps: 7 (0-6)

Sweep speed: 5 levels(0-4)

2.6image parameter save and restore

user can press one key to save image parameters in screen

user can press one key to restore image parameters to default status.
