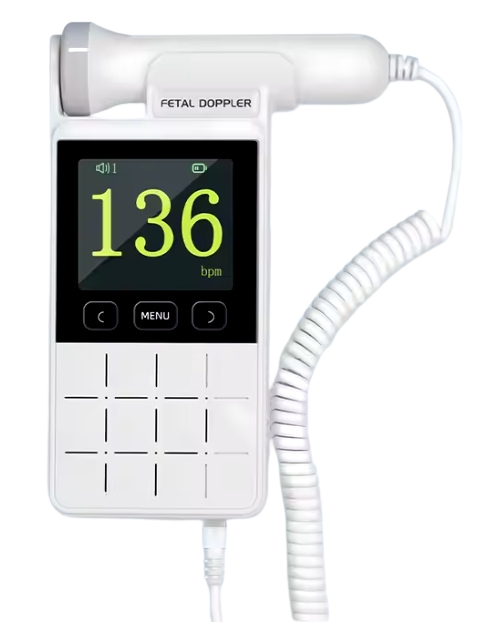

Portable Fetal Doppler Monitor - Hear Your Baby's Heartbeat Anytime, Anywhere
Digital Ultrasonic Technology for an Enhanced Pregnancy Experience
Product Overview
The Portable Fetal Doppler Monitor is designed to bring peace of mind to expectant parents by allowing them to hear their baby's heartbeat anytime, anywhere. Utilizing advanced digital ultrasonic technology, this lightweight and user-friendly device offers a clear and accurate detection of fetal heart rates from the early stages of pregnancy.
Key Features:
User-Friendly Interface: Simple controls make it easy for anyone to operate, ensuring that even first-time users can listen to their baby's heartbeat with confidence.
High-Quality Sound: Experience crystal-clear audio quality with minimal interference, enhancing the emotional connection between parents and their unborn child.
Portable Design: Compact and lightweight, this monitor can easily fit in your bag, allowing you to carry it wherever you go—perfect for home use or on-the-go listening.
Long Battery Life: Equipped with a durable battery that provides extended usage, ensuring you can enjoy multiple sessions without frequent recharging.
Safety First: Designed with both mother and baby in mind, the device uses safe, non-invasive ultrasonic technology for worry-free monitoring.
Whether you’re at home, traveling, or visiting family, the Portable Fetal Doppler Monitor helps you stay connected with your baby, making every moment of your pregnancy journey even more special. Enjoy the reassurance of hearing that precious heartbeat whenever you wish!
Other attributes
Model Number YK-90S
Power Source Electric
Material Plastic
Shelf Life 1years
Quality Certification ce
Instrument classification Class II
Safety standard None
Type Fetal Doppler Ultrasound Equipment

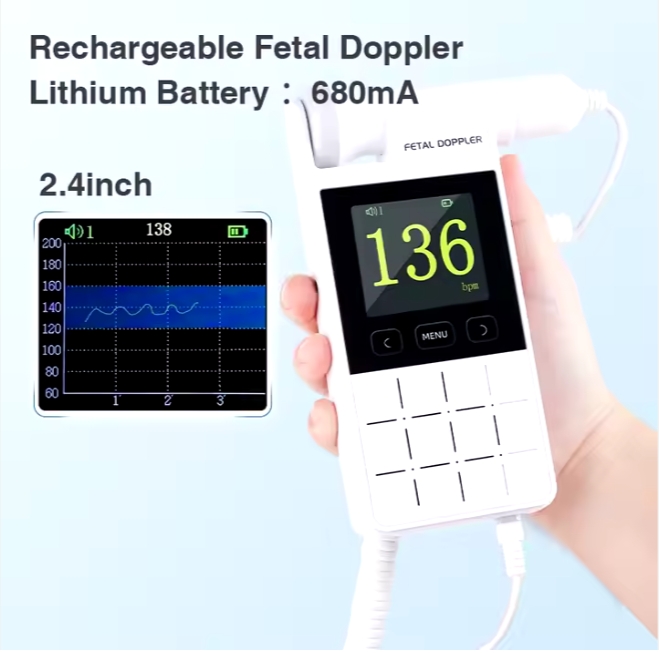

LCD Display 2.4inch
Protection the liquid level IP22
Peak negative sound pressure ≤1Mpa
Output beam intensity <20mW/c㎡
Comprehensive sensitivity ≥90dB
Working frequency 2.5MHz±5%
Lithium battery 3.7V 680mAh
weight 184g(including battery)
Size 155X68X25.5mm
Packaging
Selling Units: Single item
Single package size: 15X15X15 cm
Single gross weight: 0.300 kg
Specification
Model | YK-90S |
Protection against electric shock Type: | Internal power supply. |
Degree of protection against electric shock | BF type. |
Protection the liquid level | IP22 |
the safety level of combustible gas | not suitable for use in environments where there is flammable gases. |
operating mode | continuous work. |
Physical properties | |
Machine size | about 155(L)×68（W）×25.5（H）mm |
weight | 184g（including battery） |
Lithium battery specifications | 3.7V 680mAh |
| |
Working environment | Temperature：+5℃ ～+40℃ |
Transportation and storage environment： | Temperature：-20℃～+55℃ |
Display： | 2.4inch |
FHR measurement | 50～240BPM（BPM：times/minute） |
Accuracy | ±2BPM |
Loudspeaker specification | 8Ω1W |
Auto power off: | there is no signal more than 2 minute . |
Working frequency | 2.5MHz±5％ |
Comprehensive sensitivity(at a distance of 200 mm from the probe surface) | ≥90dB |
Output beam intensity | <20mW/ｃ㎡ |
Peak negative sound pressure | ≤1Mpa |
Spatial peak time average derived sound intensity | Ispta<100mW/ｃ㎡ |
