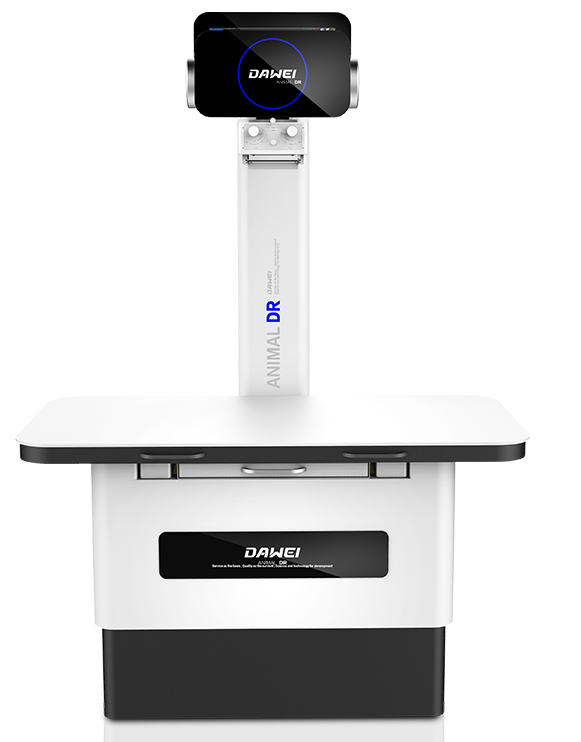

Veterinary Portable X-Ray Machine

The veterinary portable x-ray machine is a convenient and essential tool for veterinarians to diagnose and treat animals on the go. With its portable design, it allows for easy transportation between different clinics or even house calls for large animals. The machine provides high-quality imaging, allowing for accurate diagnosis of injuries, illnesses, and other medical conditions in animals. This portable x-ray machine is a valuable asset for any veterinary practice, as it enables prompt and efficient care for animals in need. Its user-friendly interface and advanced technology make it a reliable and indispensable tool for veterinarians in their everyday practice.

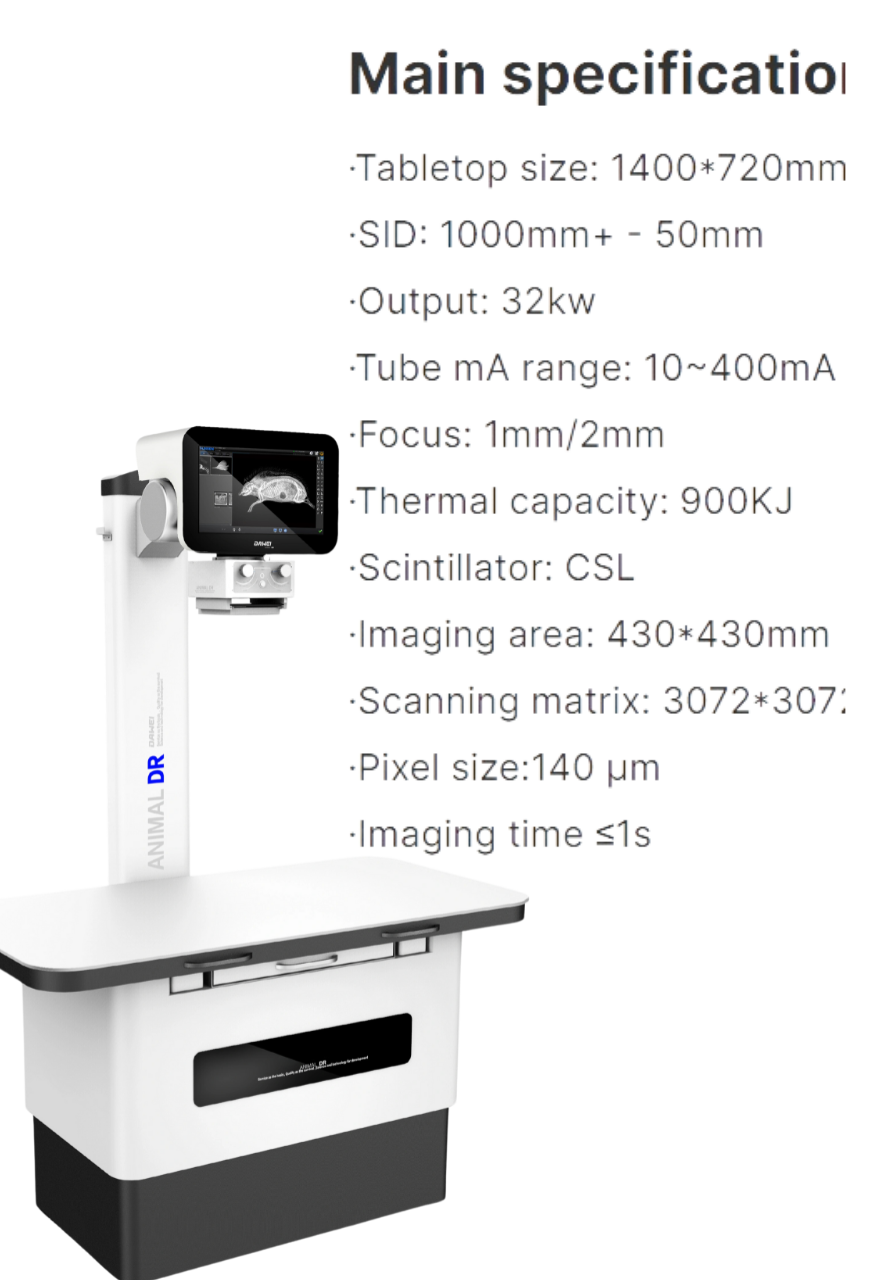

Attributes

Place of Origin：China

Model Number：RV-32B

Tabletop size：1400*720mm, ±50mm

SID：1000mm ±50mm

Thermal capacity：900KJ

Imaging time：≤1s

Focus：1mm/2mm

Tube mA range：10~400mA

Scintillator：CSL

Imaging area：430*430mm

Scanning matrix：3072*3072 pixels

Pixel size：140μm

Packaging and delivery

One set per box.
DHL shipping takes 7-15 days
Agent shipping takes 7-15 days

Port：Shanghai or Ningbo

Supply Ability

100 Unit/Units per Month

Lead time

Quantity (pieces) 1 - 10 > 10

Lead time (days) 20 To be negotiated

Software

This system is a set of medical software developed by our company for the purpose of facilitating doctors' diagnosis and patient consultation. Using this software, doctors can complete inspection items such as the collection, transmission and film printing of patient X-ray examination pictures. The multiple image processing methods built into the software also greatly facilitate the doctor's consultation, which can greatly improve the speed and accuracy of consultation. The specific functions are as follows: ✸Examination registration management: register patient information, store it in the database, and associate it with the image of the patient examination. ✸ Filming inspection: According to the registered inspection site, the filming inspection can be carried out, and the position can be added or deleted at any time, and the filming dose can be adjusted. ✸Diagnosis assistance: Enhance DR images, and provide a series of auxiliary diagnosis tools such as image adjustment, cropping, and marking. ✸Case management: patient cases and examination images are stored in a database for browsing at any time. ✸System docking: Using standard DICOM 3.0 communication protocol, it can easily connect to hospital HIS, RIS, PACS and other systems, and connect to DICOM film printers.

✸Film printing: supports local printing and DICOM network printing. ✸Case management: diagnosis report: reports can be set according to the needs of hospitals or departments, and the report layout can be edited.

Production Description
