Wholesale Handheld Veterinary Instruments: Advanced Scanners and Ultrasound Machines for Animal Care

Product Overview

Description

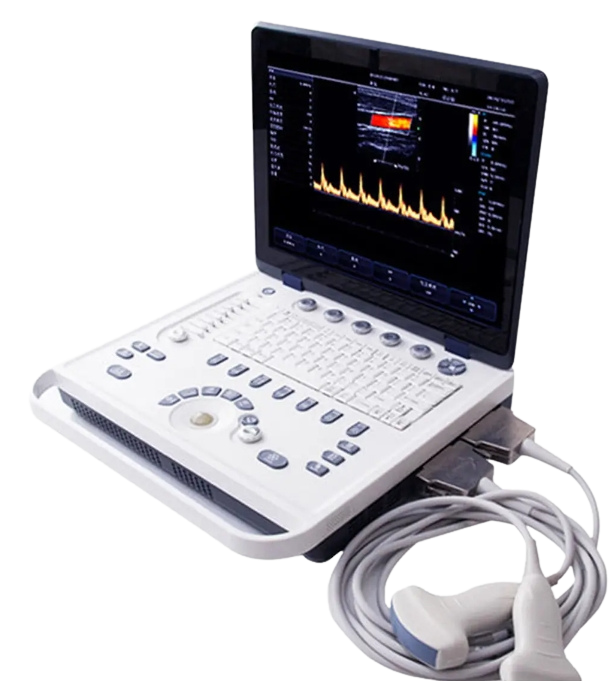

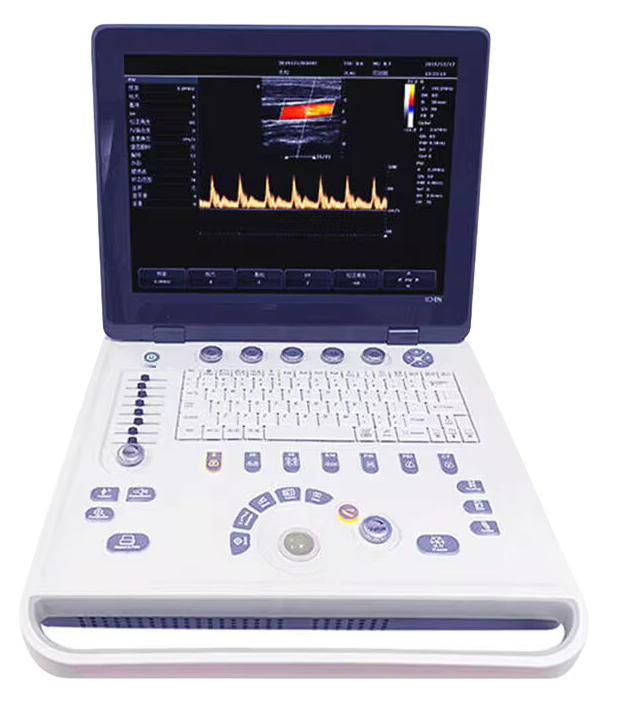

Doppler color ultrasound machine adopts advanced imaging technolog has excellent image performance. It has the characteristics of easy op high cost performance, clear image, stable and reliable quality, rich fu wide application range and strong mobility.

Attributes

Place of Origin: China

Model Number：VL8

Product Name：Veterinary Ultrasound Machine

Type：Medical doppler color laptop ultrasound machine for pet

Probe：96 Elements

Display：15 Inch LED Screen

Host size：370mm (length) 350mm (width) 60mm (thick)

Design highlights1：Built-in 18650 lithium battery pack

Design highlights2：32 channels, built-in 500 GB hard disk for data storage

Battery：Built-in 6000 mah lithium battery

Packaging and delivery

Selling Units:：Single item

Single package size: 40X40X30 cm

Single gross weight: 3.500 kg

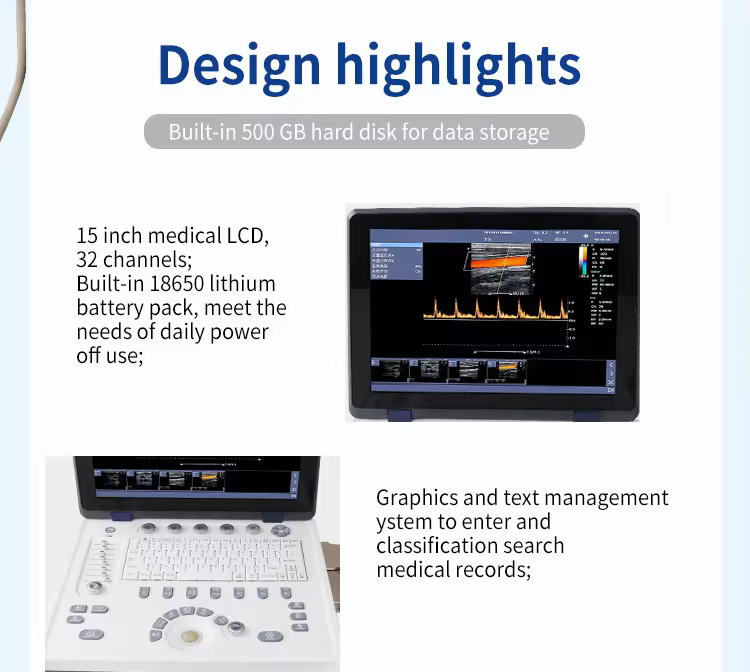

Design highlights
1、15 inch medical LCD, full digital 128 elements, 64 channels
2、Built-in 500 GB hard disk for data storage
3、Graphics and text management system to enter and classification search medical records

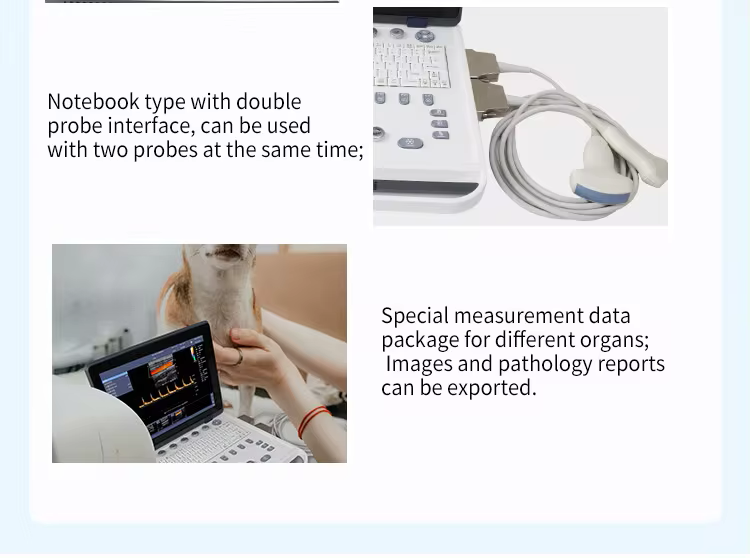

4、Notebook type with double probe interface, can be used with two probes at the same time;
5、Built-in 18650 lithium battery pack, meet the needs of daily power off use;
6、Special measurement data package for different organs
7、Images and pathology reports can be exported.

Parameters & Specification

1.1 B mode

Gray scale mapping: ≥15

Noise suppression: ≥8

Frame correlation: ≥8

Edge enhancement: ≥ 8

Image enhancement: ≥ 5

Space composite: Switch-adjustable

Scan density: high, medium, and low

Image flip: up and down, left and right

Maximum scan depth: ≥320mm

1.2 M mode

Scan speed (Sweep Sleep): ≥5 ( adjustable)

Line Average (Line Average): ≥ 8

1.3 PW mode

SV size / location: The SV size 1.0–8.0mm is adjustable

PRF: 16 gear, 0.7kHz-9.3KHz adjustable

Scan speed (Sweep Sleep): 5 gear is adjustable

Correction Angle (Correction Angle): -85°~85°, step length of 5°

Map flip: the switch is adjustable

Wall filter: 4 gear(adjustable)

Polytrum sound: ≥20 gear

1.4 Color/PDI mode

PRF: ≥ 15 gear, 0.6KHz 11.7KHz

Color Atlas (color map): ≥ 4 species

Color correlation: ≥ 8 gear

Post-processing: ≥ 4th gear

1.5 Parameter preservation and recovery

Support image parameters for one-key saving

Support the one-key reset of the image parameters
